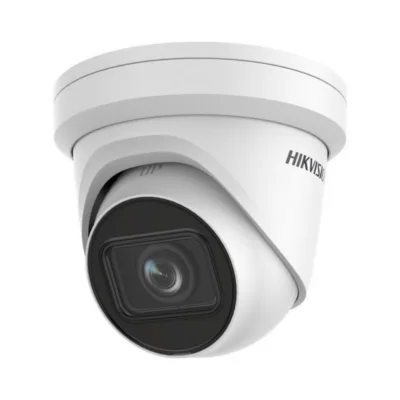

4 MP AcuSense Motorized Varifocal Turret Network Camera
SKU: DS-2CD2H43G2-IZS
Xüsusiyyətlər: 4 MP qətnamə | Varifocal motorized lens (2.8-12 mm) | 120 dB WDR | IR işıqlandırma (40 m) | IP67 və IK10 qorunması | PoE və 12 VDC enerji təchizatı | AI ilə perimetr mühafizəsi | H.265 video sıxılması | Şəbəkə yaddaş dəstəyi (NAS, SD kart) | Multi-protokollar dəstəyi | Day/Night rejimi (ICR cut) | 3D DNR, BLC, HLC | İdarəetmə üçün iVMS-4200, Hik-Connect, Hik-Central | Alüminium korpus | 33 dil dəstəyi | Ölç
İlkin qiymət: 510.00 ₼.425.00 ₼Cari qiymət: 425.00 ₼.
Taksitlə Ödə
0 ₼
Yekun məbləğ: 0 ₼
Kreditlə ödə
0 ₼
0 ₼
Techbar mağasından yaxınlaşaraq məhsulu əldə edin
Satış təmsilçilərimiz tərəfindən Sizə ən uyğun məhsul təklif olunacaqdır.
Çatdırılma xidməti
300 AZN üzəri alışlarda şəhərdaxili çatdırılma üçün nəzərdə tutulur.
Pulsuz
DHL courier will deliver to the specified address
2-3 Days
Free
Bütün məhsullara mağaza və rəsmi servis tərəfindən zəmanət verilir.
Ödəniş üsulları:
Texniki göstəricilər
| Available models |
DS-2CD2H43G2-IZS(2.8-12mm) |
|---|---|
| Web browser |
Plug-in required live view: IE 10, IE 11Plug-in free live view : Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ |
| Qətnamə |
4 MP |
| Lens növü |
Varifocal lens, motorized lens, 2.8 to 12 mm |
| Shutter Time |
1/3 s to 1/100,000 s |
| Focal Length & FOV |
2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4° |
| WDR |
120 dB |
| Iris Type |
Varifocal lens, motorized lens, 2.8 to 12 mm |
| Aperture |
F1.6 |
| Lens mount |
Ø14 |
| DORI |
2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 40 m |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR/VBR |
| Smart Supplement Light |
Yes |
| Scalable Video Coding (SVC) |
Yes |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| API |
Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
| AI |
Perimetr mühafizəsi |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets |
| Zəif işıqda görüntü |
Normal |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
| İşıqlandırma məsafəsi |
21-50m |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Yaddaş tipi |
SD Kart |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client |
iVMS-4200, Hik-Connect, Hik-Central |
| Korpus tipi |
Turret |
| Seriya |
EasyIP 2.0 Plus with AcuSense |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Reset Key |
Yes |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event |
Line crossing detection, intrusion detection (support alarm triggered by specific target types (human and vehicle))Face detection |
| Linkage |
Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email |
| Power |
12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Material |
Aluminum alloy body |
| Dimension |
Ø138.3 × 126 mm (Ø5.4" × 5.0") |
| Weight |
Approx. 830 g (1.8 lb.) |
| With Package Weight |
Approx. 1115 g (2.5 lb.) |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) |
120 dB |
| Language |
33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Anti-flicker, heartbeat, password reset via e-mail, pixel counter |
| EMC |
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety |
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Day & Night |
ICR Cut |
| IR Wavelength |
850 nm |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| Environment Noise Filtering |
Yes |
| Alarm |
1 input, 1 output (max. 12 VDC, 30 mA) |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Audio |
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
