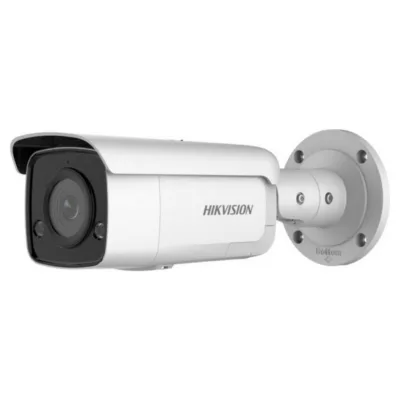

4 MP AcuSense Strobe Light and Audible Warning Fixed Bullet Network Camera
SKU: DS-2CD2T46G2-ISU/SL
Xüsusiyyətlər: EasyIP 4.0 with AcuSense seriyası | Bullet korpus tipi | 4 MP qətnamə | 2.8, 4, 6 mm sabit fokuslu lens variantları | 120 dB WDR | IR əlavə işıq, 60 m işıqlandırma məsafəsi | Stroboskop və siren ilə perimetr mühafizəsi | H.265 Main Profile video sıxışdırma | Motion detection, intrusion detection, line crossing detection | IP67 su və toz keçirməzlik | 12 VDC və PoE təminatı | SD kart və NAS yaddaş dəstəyi | Daxili mikrofon və 2 W gücündə dinamik | Güclü təhlükəsizlik protokollar
İlkin qiymət: 362.00 ₼.302.00 ₼Cari qiymət: 302.00 ₼.
Taksitlə Ödə
0 ₼
Yekun məbləğ: 0 ₼
Kreditlə ödə
0 ₼
0 ₼
Techbar mağasından yaxınlaşaraq məhsulu əldə edin
Satış təmsilçilərimiz tərəfindən Sizə ən uyğun məhsul təklif olunacaqdır.
Çatdırılma xidməti
300 AZN üzəri alışlarda şəhərdaxili çatdırılma üçün nəzərdə tutulur.
Pulsuz
DHL courier will deliver to the specified address
2-3 Days
Free
Bütün məhsullara mağaza və rəsmi servis tərəfindən zəmanət verilir.
Ödəniş üsulları:
Texniki göstəricilər
| Available models |
DS-2CD2T46G2-ISU/SL(2.8mm)(C), DS-2CD2T46G2-ISU/SL(4mm)(C), DS-2CD2T46G2-ISU/SL(6mm)(C) |
|---|---|
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Qətnamə |
4 MP, 6 MP |
| Lens növü |
Fixed focal lens, 2.8, 4, and 6 mm optional |
| Shutter Time |
1/3 s to 1/100,000 s |
| Focal Length & FOV |
2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123°4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98°6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62° |
| WDR |
120 dB |
| Iris Type |
Fixed focal lens, 2.8, 4, and 6 mm optional |
| Aperture |
F1.4 |
| Lens mount |
M12 |
| DORI |
2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 60 m |
| Smart Supplement Light |
Yes |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| H.265 Type |
Main Profile |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| API |
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| AI |
Perimeter mühafizəsi (stroboskop və siren), Perimetr mühafizəsi, Var |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Zəif işıqda görüntü |
Powered by Darkfighter |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
| İşıqlandırma məsafəsi |
51-100m |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Yaddaş tipi |
SD Kart |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Client |
iVMS-4200, Hik-Connect, Hik-Central |
| Web browser |
Plug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Wide Dynamic Range (WDR) |
120 dB |
| Korpus tipi |
Bullet |
| Seriya |
EasyIP 4.0 with AcuSense |
| General Function |
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| EMC |
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| SNR |
≥ 52 dB |
| Reset Key |
Yes |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection |
| Linkage |
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning |
| Power |
12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plugPoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max: 12 W |
| Dimension |
Ø105 mm × 287.6 mm (Ø4.1" × 11.3") |
| Weight |
Approx. 1135 g (2.5 lb.) |
| With Package Weight |
Approx. 1624 g (3.6 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Image Parameters Switch |
Yes |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Safety |
UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); LOA (IEC/EN 60950-1) |
| Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529-2013) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Day & Night |
IR cut filter |
| IR Wavelength |
850 nm |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| Audio Type |
Mono sound |
| Environment Noise Filtering |
Yes |
| Built-in Microphone |
Yes |
| Alarm |
Visual alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Audio |
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance:2.2 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 10 Ω, interface type: non-equilibrium |
| Face Capture |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Built-in Speaker |
Power: 2 W. Max. sound pressure level: 10 cm: 97 dB. |
