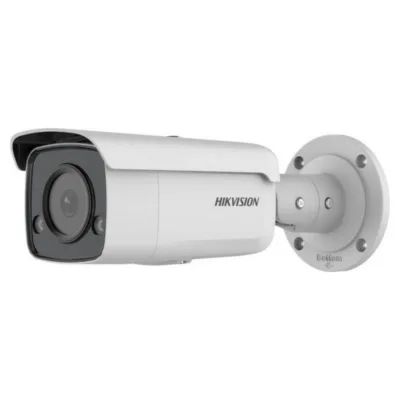

4 MP ColorVu Fixed Bullet Network Camera
SKU: DS-2CD2T47G2-L (4mm)
Xüsusiyyətlər: EasyIP 4.0 with ColorVu | Bullet korpus tipi | 4 MP qətnamə | Fixed 4mm lens | WDR 130 dB | F1.0 aperture | White light 60m supplement | Smart supplement light | H.265 Main Profile | Perimetr mühafizəsi AI | TCP/IP və digər protokollar | ColorVu zəif işıq şəraitində görüntü | Up to 32 users | SD kart dəstəyi (512 GB) | PoE dəstəyi | IP67 qoruma | 12 VDC və PoE güc təchizatı | 33 dil dəstəyi | Motion detection və smart event-lər | Ölçü: Ø105 mm × 289.5 mm | Çəki: 1170 q
İlkin qiymət: 480.00 ₼.400.00 ₼Cari qiymət: 400.00 ₼.
Taksitlə Ödə
0 ₼
Yekun məbləğ: 0 ₼
Kreditlə ödə
0 ₼
0 ₼
Techbar mağasından yaxınlaşaraq məhsulu əldə edin
Satış təmsilçilərimiz tərəfindən Sizə ən uyğun məhsul təklif olunacaqdır.
Çatdırılma xidməti
300 AZN üzəri alışlarda şəhərdaxili çatdırılma üçün nəzərdə tutulur.
Pulsuz
DHL courier will deliver to the specified address
2-3 Days
Free
Bütün məhsullara mağaza və rəsmi servis tərəfindən zəmanət verilir.
Ödəniş üsulları:
Texniki göstəricilər
| Available models |
DS-2CD2T47G2-L(2.8mm)(C), DS-2CD2T47G2-L(4mm)(C), DS-2CD2T47G2-L(6mm)(C) |
|---|---|
| Network Storage |
MicroSD/microSDHC/microSDXC card (512 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Qətnamə |
4 MP |
| Lens növü |
Fixed focal lens, 2.8, 4, and 6 mm optional |
| Shutter Time |
1/3 s to 1/100,000 s |
| Focal Length & FOV |
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69° |
| WDR |
130 dB |
| Iris Type |
Fixed focal lens, 2.8, 4, and 6 mm optional |
| Aperture |
F1.0 |
| Lens mount |
M16 |
| DORI |
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Supplement Light Type |
White Light |
| Smart Supplement Light |
Yes |
| H.265 Type |
Main Profile |
| Supplement Light Range |
60 m |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| API |
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| AI |
Perimetr mühafizəsi |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Zəif işıqda görüntü |
ColorVu |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
| İşıqlandırma məsafəsi |
51-100m |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Yaddaş tipi |
SD Kart |
| Korpus tipi |
Bullet |
| Seriya |
EasyIP 4.0 with ColorVu |
| Dimension |
Ø105 mm × 289.5 mm (Ø4.1″ × 11.4″) |
| Weight |
Approx. 1170 g (2.4 lb.) |
| Day/Night Switch |
Auto, Schedule |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| SNR |
≥ 52 dB |
| Reset Key |
Yes |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection |
| Linkage |
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email |
| Power |
12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plugPoE: 802.3af, 36 V to 57 V, 0.30 A to 0.18 A, max. 10.5 W |
| Web browser |
Plug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Client |
iVMS-4200, Hik-Connect, Hik-Central |
| With Package Weight |
Approx. 1689 g (3.5 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language |
33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function |
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| EMC |
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016);KC (KN 32: 2015, KN 35: 2015) |
| Safety |
UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015); LOA (IEC/EN 60950-1) |
| Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529-2013) |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| Depth of Field |
2.8 mm, 2.5 m to ∞4 mm, 3.5 m to ∞6 mm, 7.5 m to ∞ |
| Wide Dynamic Range (WDR) |
130 dB |
| Face Capture |
Yes |
