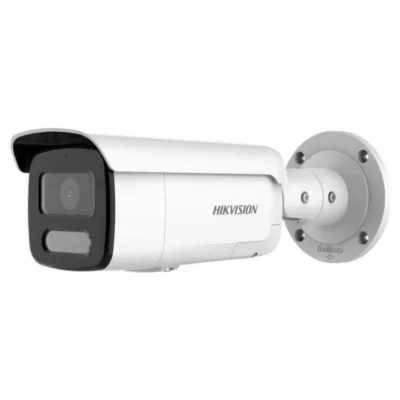

4 MP ColorVu Strobe Light and Audible Warning Fixed Bullet Network Camera
SKU: DS-2CD2T47G2-LSU/SL
Xüsusiyyətlər: 4 MP qətnamə | Bullet korpus tipi | Sabit lens (2.8 mm / 4 mm / 6 mm) | ColorVu zəif işıqda görüntü | 130 dB WDR | Smart Supplement White Light (60 m) | H.265 və H.264 şifrələmə | Perimeter mühafizəsi (stroboskop və siren) | IP67 qoruma | Mikrofon və səs çıxışı | Face Capture | PoE dəstəyi | SD kart və NAS yaddaş dəstəyi | TCP/IP, HTTPs, RTSP və digər protokollar | 12 VDC və PoE enerji | Ölçülər: 289.5 mm × Ø105 mm | Çəki: 1165 q
İlkin qiymət: 516.00 ₼.430.00 ₼Cari qiymət: 430.00 ₼.
Taksitlə Ödə
0 ₼
Yekun məbləğ: 0 ₼
Kreditlə ödə
0 ₼
0 ₼
Techbar mağasından yaxınlaşaraq məhsulu əldə edin
Satış təmsilçilərimiz tərəfindən Sizə ən uyğun məhsul təklif olunacaqdır.
Çatdırılma xidməti
300 AZN üzəri alışlarda şəhərdaxili çatdırılma üçün nəzərdə tutulur.
Pulsuz
DHL courier will deliver to the specified address
2-3 Days
Free
Bütün məhsullara mağaza və rəsmi servis tərəfindən zəmanət verilir.
Ödəniş üsulları:
Texniki göstəricilər
| Available models |
DS-2CD2T47G2-LSU/SL(2.8mm)(C), DS-2CD2T47G2-LSU/SL(4mm)(C), DS-2CD2T47G2-LSU/SL(6mm)(C) |
|---|---|
| Wide Dynamic Range (WDR) |
130 dB |
| Qətnamə |
4 MP |
| Lens növü |
Sabit lens |
| Shutter Time |
1/3 s to 1/100,000 s |
| Focal Length & FOV |
2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°6 mm, horizontal FOV 58.4°, vertical FOV 31°, diagonal FOV 68.7° |
| WDR |
130 dB |
| Aperture |
F1.0 |
| Lens mount |
M16 |
| DORI |
2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m6 mm, D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m |
| Supplement Light Type |
White light |
| Supplement Light Range |
Up to 60 m |
| Smart Supplement Light |
Yes |
| Bit Rate Control |
CBR/VBR |
| Scalable Video Coding (SVC) |
H.265 and H.264 encoding |
| H.265 Type |
Main Profile |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| API |
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| AI |
Perimeter mühafizəsi (stroboskop və siren) |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Zəif işıqda görüntü |
ColorVu |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
| İşıqlandırma məsafəsi |
51-100m |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Yaddaş tipi |
SD Kart |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR), microSD/microSDHC/microSDXC card (512 GB) local storageTogether with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Client |
iVMS-4200, Hik-Connect, Hik-Central |
| Web browser |
Plug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Korpus tipi |
Bullet |
| Seriya |
EasyIP 4.0 with ColorVu |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function |
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| SNR |
≥ 52 dB |
| Reset Key |
Yes |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle))Scene change detection |
| Linkage |
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output |
| Power |
12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W |
| Dimension |
289.5 mm × Ø105 mm (11.4"× Ø4.1") |
| Weight |
Approx. 1165 g (2.6 lb.) |
| With Package Weight |
Approx. 1639 g (3.6 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Day/Night Switch |
Auto, Schedule |
| EMC |
FCC SDoC: 47 CFR Part 15, Subpart B;CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 6, 2016; KC: KN 32: 2015, KN 35: 2015 |
| Safety |
UL: UL 60950-1;CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014;LOA: IEC/EN 60950-1 |
| Environment |
CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Protection |
IP67: IEC 60529-2013 |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| Environment Noise Filtering |
Yes |
| Built-in Microphone |
Yes |
| Depth of Field |
2.8 mm: 3.1 m to ∞4 mm: 5.4 m to ∞6 mm: 12.1 m to ∞ |
| Alarm |
Visual alarm1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Audio |
1 input (line in), two-core terminal block , max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out),two-core terminal block , max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Face Capture |
Yes |
| Image Parameters Switch |
Yes |
| Built-in Speaker |
2 W, 10 cm: 97 dB |
