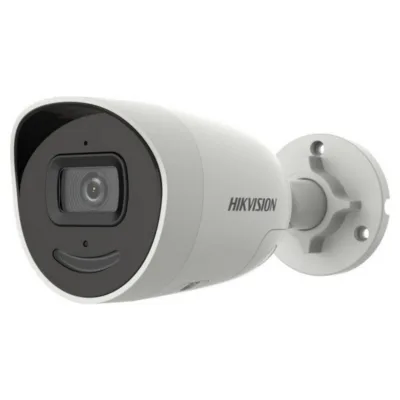

4 MP AcuSense Strobe Light and Audible Warning Fixed Mini Bullet Network Camera
SKU: DS-2CD2046G2-IU/SL
Xüsusiyyətlər: EasyIP 4.0 with AcuSense seriyası | Bullet korpus tipi | 4 MP qətnamə | Fixed focal lens (2.8, 4, 6 mm variantları) | 120 dB WDR | IR əlavə işıq, 40 m sıra | Darkfighter zəif işıqda görüntü | H.265 və H.264 şifrələmə | Perimeter mühafizəsi (stroboskop və siren) | IP67 qorunma | Metal korpus | PoE dəstəyi | 33 dil dəstəyi | SD kart və NAS yaddaşı | Genişlənə bilən video kodlaşdırma | SNR ≥ 52 dB | Daxili mikrofon və spiker | 7.
İlkin qiymət: 431.00 ₼.359.00 ₼Cari qiymət: 359.00 ₼.
Taksitlə Ödə
0 ₼
Yekun məbləğ: 0 ₼
Kreditlə ödə
0 ₼
0 ₼
Techbar mağasından yaxınlaşaraq məhsulu əldə edin
Satış təmsilçilərimiz tərəfindən Sizə ən uyğun məhsul təklif olunacaqdır.
Çatdırılma xidməti
300 AZN üzəri alışlarda şəhərdaxili çatdırılma üçün nəzərdə tutulur.
Pulsuz
DHL courier will deliver to the specified address
2-3 Days
Free
Bütün məhsullara mağaza və rəsmi servis tərəfindən zəmanət verilir.
Ödəniş üsulları:
Texniki göstəricilər
| Available models |
DS-2CD2046G2-IU/SL(2.8mm)(C), DS-2CD2046G2-IU/SL(4mm)(C), DS-2CD2046G2-IU/SL(6mm)(C) |
|---|---|
| Focal Length & FOV |
2.8 mm, horizontal FOV: 103°, vertical FOV: 55°, diagonal FOV: 123°4 mm, horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 98°6 mm, horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 62° |
| AI |
Perimeter mühafizəsi (stroboskop və siren), Var |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Korpus tipi |
Bullet |
| Qətnamə |
4 MP |
| Lens növü |
Fixed focal lens, 2.8, 4, and 6 mm optional |
| WDR |
120 dB |
| Aperture |
F1.4 |
| Seriya |
EasyIP 4.0 with AcuSense |
| Wide Dynamic Range (WDR) |
120 dB |
| Basic Event |
Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Lens mount |
M12 |
| Supplement Light Type |
IR |
| Supplement Light Range |
Up to 40 m |
| Smart Supplement Light |
Yes |
| H.265 Type |
Main Profile |
| DORI |
2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m |
| Web browser |
Plug-in required live view: IE 10, IE 11Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| API |
Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Zəif işıqda görüntü |
Powered by Darkfighter |
| User/Host |
Up to 32 users. 3 user levels: administrator, operator and user |
| İşıqlandırma məsafəsi |
21-50m |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Yaddaş tipi |
SD Kart |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client |
iVMS-4200, Hik-Connect, Hik-Central |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| SNR |
≥ 52 dB |
| Reset Key |
Yes |
| Bit Rate Control |
CBR/VBR |
| Iris Type |
Fixed focal lens, 2.8, 4, and 6 mm optional |
| Safety |
UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015); LOA (IEC/EN 60950-1) |
| Environment Noise Filtering |
Yes |
| Dimension |
72.9 mm × 73.3 mm × 191.1 mm (2.9" × 2.9" × 7.5") |
| Weight |
Approx. 590 g (1.3 lb.) |
| With Package Weight |
Approx. 820 g (1.8 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Audio Type |
Mono sound |
| Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection |
| H.265+ |
Main stream supports |
| General Function |
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Environment |
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection |
IP67 (IEC 60529-2013) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Day & Night |
IR cut filter |
| IR Wavelength |
850 nm |
| H.264 Type |
Baseline Profile/Main Profile/High Profile |
| Linkage |
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email |
| Language |
33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC |
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Built-in Microphone |
Yes |
| Material |
Metal |
| Shutter Speed |
1/3 s to 1/100,000 s |
| Visual Alarm |
Yes |
| Web Client Language |
33 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Face Capture |
Yes |
| Slow Shutter |
Yes |
| H.264+ |
Main stream supports |
| Power |
12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protectionPoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 8 W |
| Built-in Speaker |
Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB. |
| Wide Dynamic Range |
120 dB |
| IR Range |
Up to 40 m |
| Perimeter Protection |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Linkage Method |
Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email |
| P/N |
P/N |
| Power Consumption and Current |
12 VDC, 0.54 A, max. 6.5 WPoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8.0 W |
| Software Reset |
Yes |
| Power Interface |
Ø5.5 mm coaxial power plug |
